Wire Mesh Welding Machine Model：GSA-150L
Welding Process
- Both Line wires and Cross wires are pre-cut.
- Automatically loading Line Wires and Cross wires.
- Servo driven automatic push Line wire into weld position.
- Pull out welded Mesh by servo motor.
Applications
Viking Guard Panels,Fencing Mesh.
Inquiry

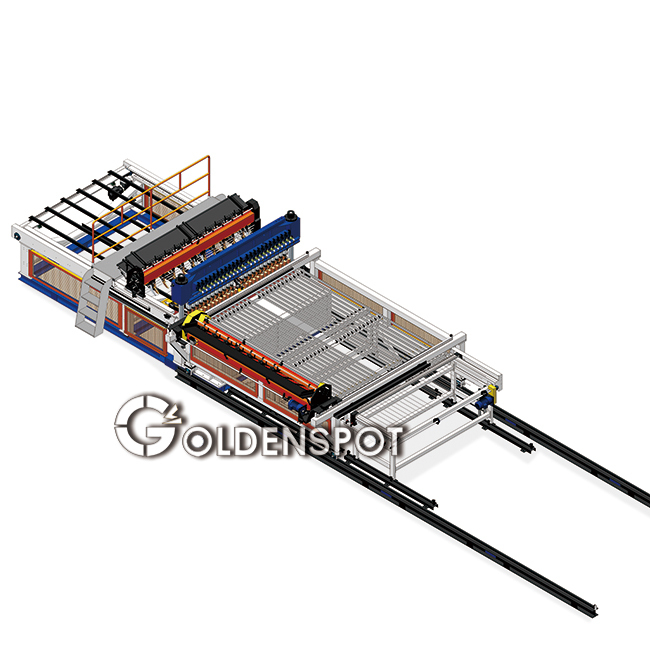

3D schematic
| Model | Line Wire Length mm | Cross Wire Length mm | Wire Diameter mm | Line Wire Pitch mm | Cross Wire Pitch |
|---|---|---|---|---|---|
| GSA-125L | 2500 | 2500 | Ø3~6 | ≧50 | ≧25 |
| GSA-150L | 3000 | 3000 | Ø3~6 | ≧50 |
≧25 |
