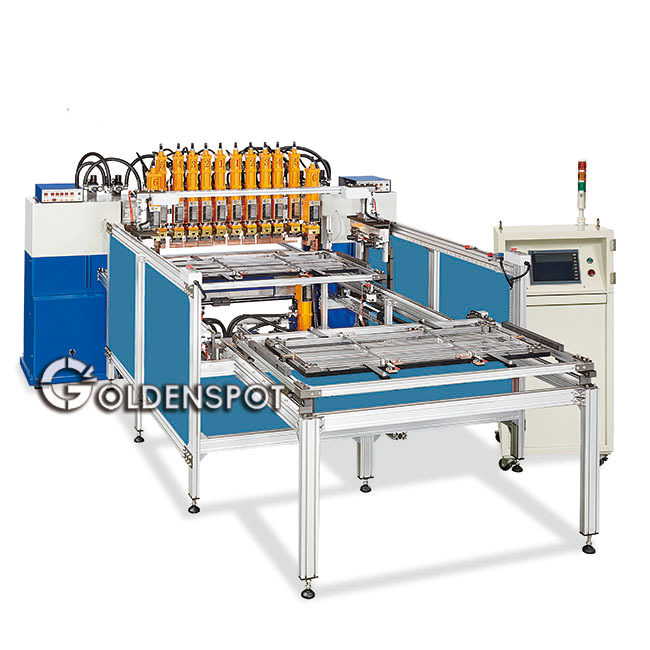

Dual-layer Multi-point Spot Welding Machine Model：SA-1500AF
1.Auto Dual-layer Workbench interchangeable, feed and weld simultaneously. One man operates all.
2.Controlled by touch panel HMI with PLC system, fast and precise welding with multiple welding programs.
3.90 programs for different applications save time from re-entering welding values/conditions during production shifting.
4.Perform welding time & current separately for each weld.
Application
Mesh applications requires high production rate. Cages for pets & livestock, display rack, gridiron, shopping cart, etc...
Inquiry
| Model | Rated Capacity | Max. Pressure | Cylinder | Weld Width |
|---|---|---|---|---|
| NO. | KVA | KG | PCS | mm |
| SA-800AF | 80 | 500 | 10 | 1,000 |
| SA-1000AF | 100 | 500 | 10 | 1,000 |
| SA-1200AF | 120 | 500 | 12 | 1,200 |
| SA-1500AF | 150 | 500 | 12 | 1,200 |
| SA-2000AF | 200 | 500 | 12 | 1,200 |
886-4-23331788
