Ladder Type Welded Mesh Machine SS-SH400

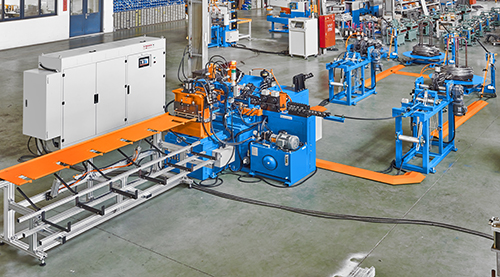

Ladder Type Welded Mesh Machine
Model:SS-SH400


Applications

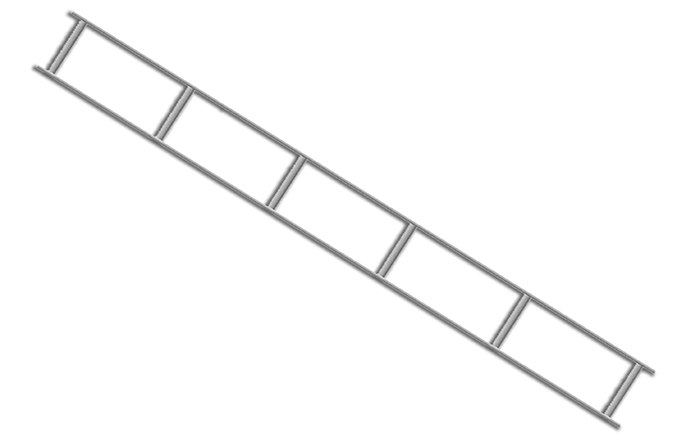

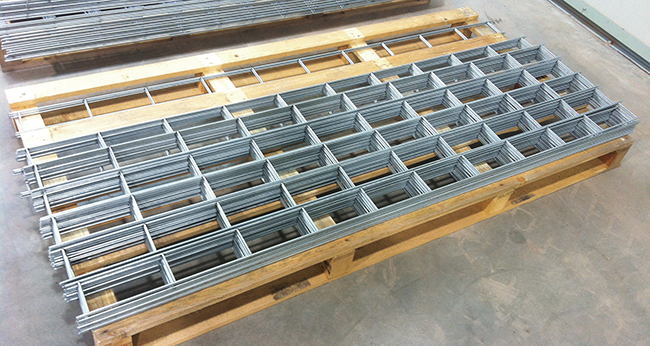

Ladder-Mesh are continuous lengths of joint reinforcement that are embedded into the horizontal mortar joint of masonry walls.

Availabe material
Mild steel, Hot dipped Galvanized, Stainless Steel


Inquiry

Line wire
2 units of Pay-off (spool)→ Wire straightening device→ Advancing device (servo motor)
Cross wire
1 unit of Pay-off (spool) → Wire straightening device→ Advancing device (servo motor)
2 units T-type welding device ( weld ) → End-product Shearing device → End-product Stacker

Wire guiding device
Detects the wires going through or not.

Wire straightening device
Straightening the wires.

Advancing device
Driven by servo motor, feeding progressively based on the programmed required pitch.

Cross wire Shearing device
Auto cutting the programmed pitch accordingly. (Hydraulic system).

Welding device
2 units for the process of T-type welding.

End-product Shearing device
Auto cutting the preset length accordingly. (Hydraulic system.)

End-product Stacker
Deposits the end-products after cutting.

Electronic Control
Equipped with man-machine interface windows based and PLC control, all the parameters and figures set on the screen, easy operating and maintenance.
