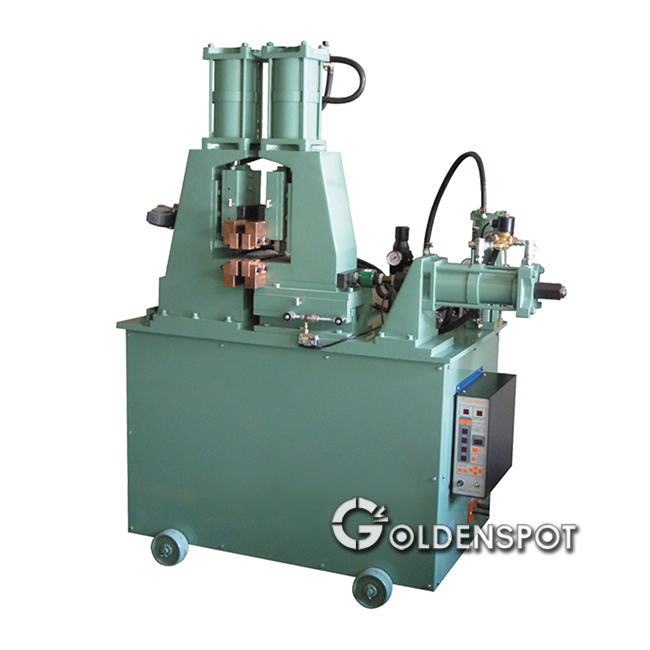

Pneumatic Flash Butt Welding Machine Model：SB-800
Features
1.Simplified settings by micro-computer weld controller. Maximum 9 programs storage.
2.Fast action + Good quality = Performance.
3.Easy molds switching system.
Applications
Wire mesh for fan, bicycle basket, shopping basket, suit case & luggage frames
Inquiry
| Model | Rated Capacity | Voltage | Rated Frequency | Max. Short Current | Weld Wire | Weld Pipe | Permissible Duty |
|---|---|---|---|---|---|---|---|
| NO. | KVA | V | HZ | A | mm | mm | % |
| SB-800 | 80 | 220/380 | 50/60 | 20000 | Ø10 | Ø25 X 1.0 | 10 |
| SB-1000 | 100 | 220/380 | 50/60 | 28000 | Ø15 | Ø32 X 1.2 | 10 |
| SB-1200 | 120 | 220/380 | 50/60 | 34000 | Ø18 | Ø36 X 1.4 | 10 |
| SB-1500 | 150 | 220/380 | 50/60 | 38000 | Ø20 | Ø40 X 2.0 | 10 |
886-4-23331788
