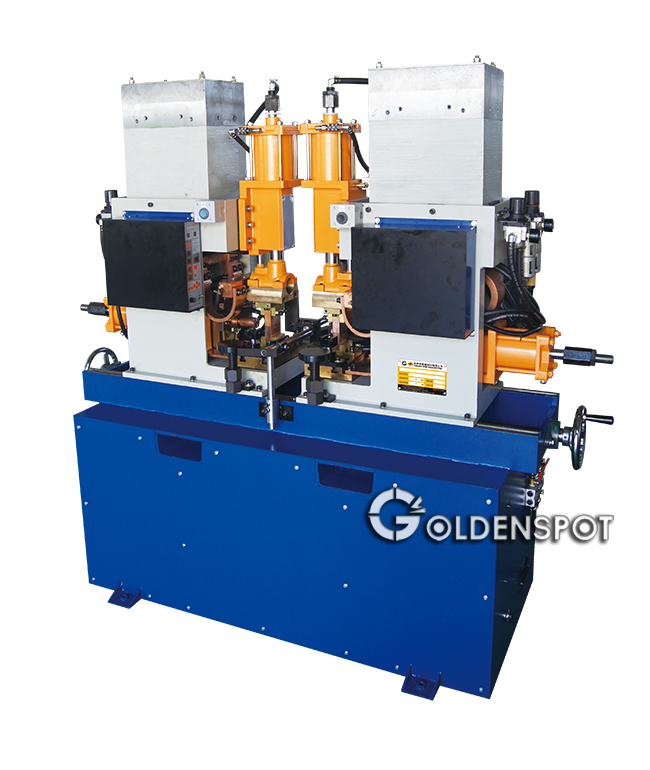

Pneumatic H-Type Butt Welding Machine Model：SBH-1200
Features
1.Suits for T, H and U shaped Wire & Tube, weld.
2.Direct apply trimmed edge without other process.
3.Fast & handy operate to regular operator.
Applications
Display Rack, Foldable Chair, Handrail, Baby Cart, Metal Furniture...etc.
Inquiry
| Model | Rated Capacity | Voltage | Rated Frequency | Permissible Duty | Max. Short Circuit Currents | Weld Wire | Weld Pipe |
|---|---|---|---|---|---|---|---|
| NO. | KVA | V | HZ | % | A | mm | mm |
| SBH-1000 | 100 | 220/380 | 50/60 | 8 | 34,000 | Ø8 X 8 | Ø16 X 0.8~1.2 |
| SBH-1200 | 120 | 220/380 | 50/60 | 8 | 38,000 | Ø10 X 10 | Ø20 X 1.2~2.0 |
| SBH-1500 | 150 | 220/380 | 50/60 | 8 | 40,000 | Ø16 X 16 | Ø25 X 1.2~2.0 |
